Ships in 5-7 business days
The SeQual Eclipse 5 offers both portability and clinical efficiency, making it ideal for those always on the go. With 24/7 use, it provides continuous flow from 0.5 to 3 LPM and pulse doses up to a setting of 9. Say goodbye to limitations and hello to a fully adaptable oxygen therapy device.
Smart technology to ensure saturation
autoSAT® Automatic adjustment to patient’s respiratory rate
Adjustable Rise Time Maximizing inhaled oxygen
UltraSense® Sensitive breath detection technology
myCAIRE™ Telehealth solution
Continuous or pulse dose delivery
With 6 continuous flow settings up to 3 LPM and 9 pulse flow settings up to 192 mL bolus, the Eclipse 5 serves a wide range of patients.
Compact and Transportable
Only 18.7 lbs, with an easy-to-attach traveling cart with telescoping handle and durable wheels.
Extended Battery Life
Over 5 hours of battery life with ability to recharge while plugged into DC power at pulse setting 2.
Enables Airline Travel
FAA-approved for commercial airline travel.
24/ 7 Use
Meets a variety of needs for all phases of activity.

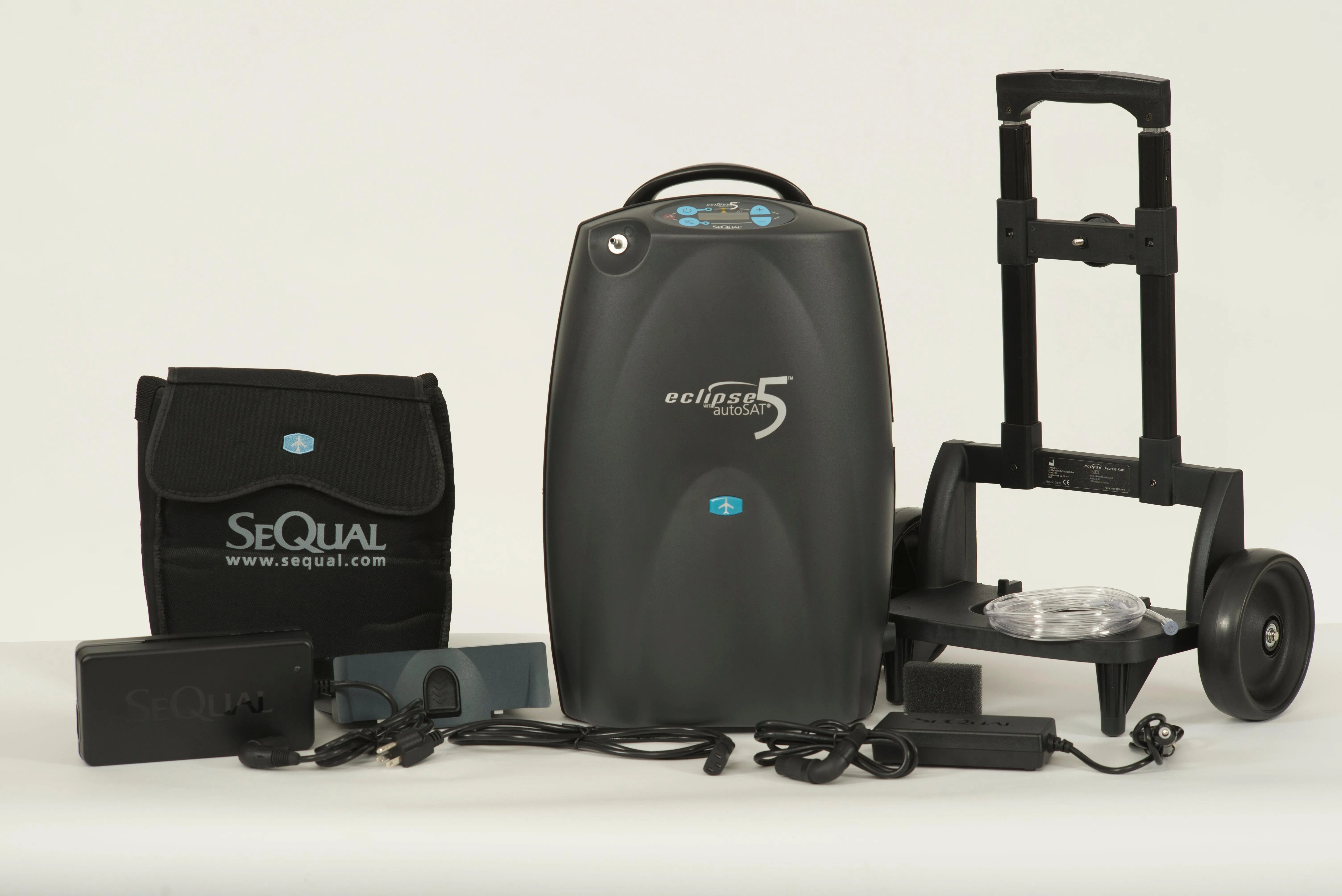

In the box:
- Portable oxygen concentrator
- Power cartridge (battery)
- AC power supply
- DC power supply
- Removable cart
- Accessory bag
- Nasal cannula
- Spare intake filter
Prescriptive Device
*Lithium Battery transport-as required by Transport Canada , Lithium Batteries shipped as Dangerous Goods. This product is not eligible for Priority Shipping.
| Dimensions | Height: 19.3 inches Width: 12.3 inches Depth: 7.1 inches |
|---|---|
| Product Weight | 18.4 lbs. with battery |
| FAA Approved | Yes |
| Warranty | 3 years (Includes sieve beds) 1 year on battery and power supplies |
| Alarms / Alerts | Unit malfunction, Low battery, Loss of unit power, Oxygen flow outside normal limits, Low therapeutic oxygen output, No inspiration detected in pulse dose mode |
| Battery Charging Time | 1.8 to 5 hours to reach 80% battery capacity (dependent upon flow level) |
| Battery Duration | up to 5.4 hours in pulse mode up to 4.4 hours in continuous flow mode |
| Flow Rate | Continuous Flow: 6 settings up to 3 LPM Pulse Dose: 9 settings up to 192 mL bolus |
| Maximum Oxygen Output | 3000 ml/min |
| Noise Level | 48 decibels at 3 LPM on continuous flow (Average office noise) 40 decibels at a 3.0 pulse dose setting (Quiet conversation) |
| Oxygen Purity | 87 to 97% at all settings |
| Power | AC Power: 100-240 VAC, 50-60Hz DC Power: 12 VDC minimum (all settings available in AC and DC power supply) Battery: Lithium Ion |
| Power Consumption | Continuous = 52 watts at 1 LPM - 145 watts at 3 LPM Pulse Dose = 45 watts at 1, 95 watts at 6 |
| Trigger Sensitivity | Negative pressure between -.135 to -.37 cm |
| Operating Ranges, Intended for Use | Altitude Range: Sea level to 13,123 Temperature Range: 50 degrees to 104 degrees F at 82 degrees F dew point, non-condensing |
| In the box | Includes the Eclipse 5 unit (6900-SEQ), one Eclipse battery (7082), AC power adapter (5941), DC power adapter (5942), accessory bag (7104), carry cart (5991), cannula and user’s manual (20626704). |
