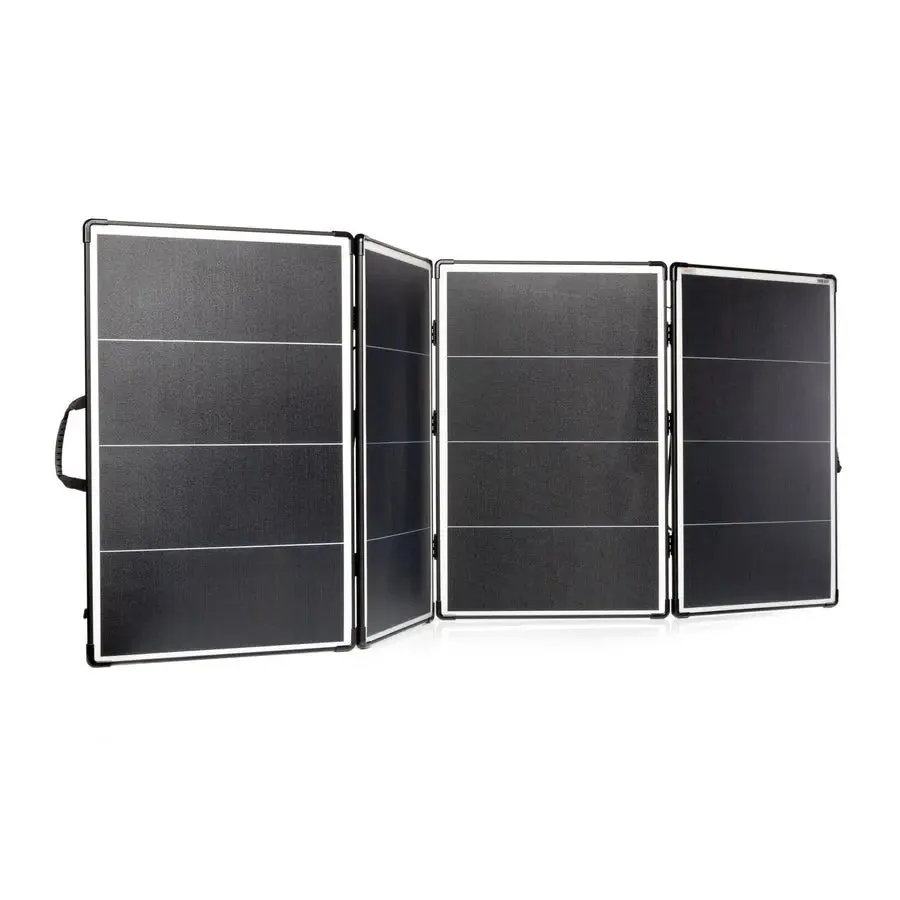

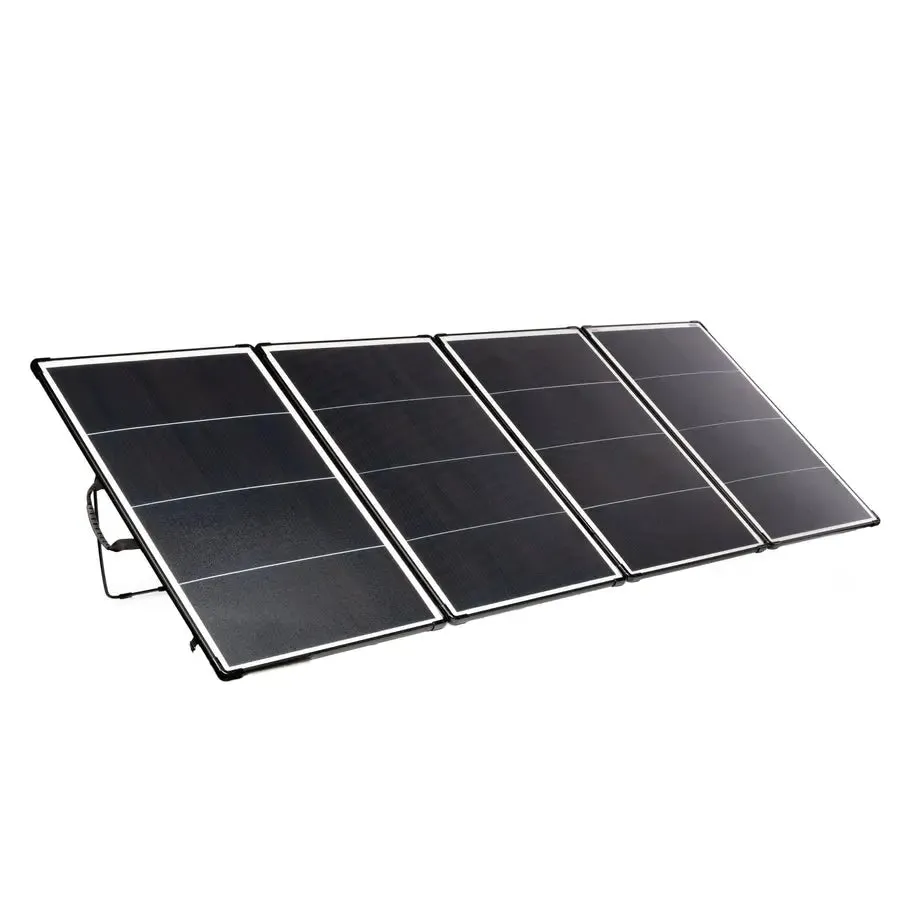

KALAHARI-400 HI-VOLT TEFLON (ETFE) FOLDABLE SOLAR PANEL BY FLEXOPOWER - ideal to charge 12volt battery systems.

Product Highlights

• High Voltage (Hi-Volt) Range: 400W Model
• Operates at a nominal 24V for increased efficiency.
• Perfect for portable power stations and MPPT camping systems.
• Advanced Teflon (ETFE) module encapsulation for durability
• Shingled solar cell technology for improved power output.
• Aluminum frame for stability
• Collapsible supporting legs for optimal solar harvesting
• Unique serial number for traceability
• 5-year warranty

Specifications

• Application: Suitable for 5 days of camping
• STC Rated Output: 400W
• Max. Operating Voltage (Vmp): 36.5V
• Open Circuit Voltage (Voc): 43.1V
• Operating Current (Imp): 11A
• Max. System Voltage: 200V
• Weight: 12.6kg
• Encapsulation: Teflon (ETFE)
• Solar Cells: Mono-crystalline PERC, shingled, 22% efficiency.

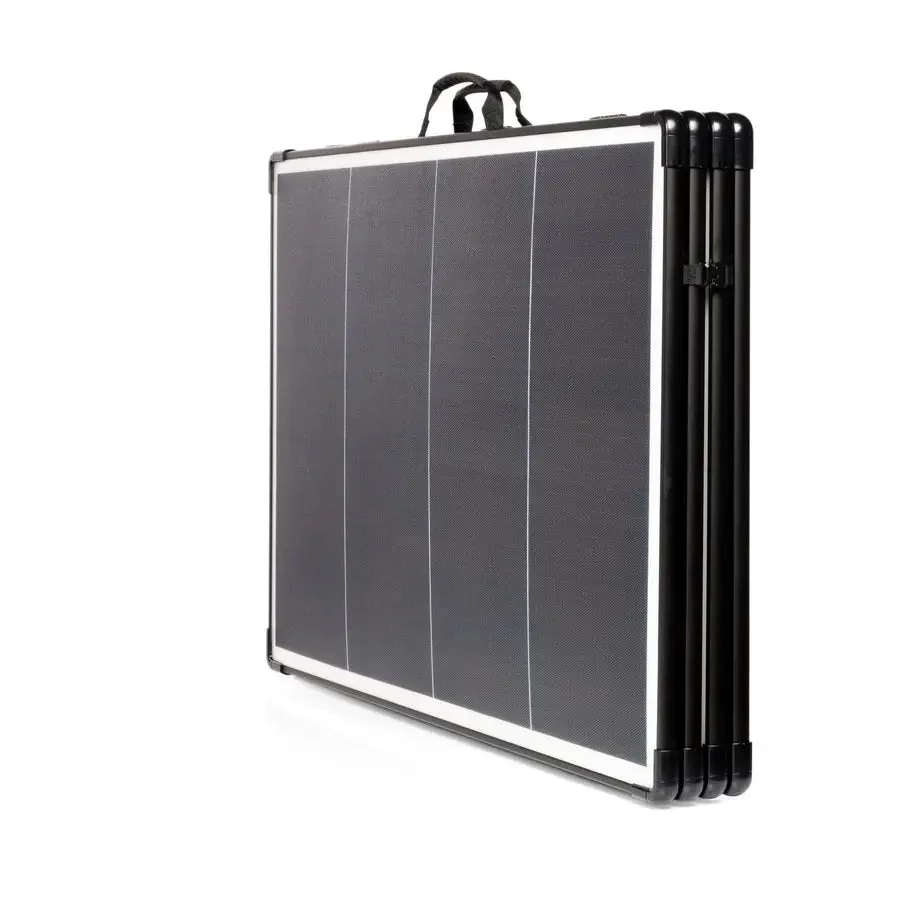

• Dimensions (folded): 900 x 590 x 90 mm
• Dimensions (unfolded): 2360 x 900 x 25 mm
• Warranty: 5 Years on manufacturing

Key Features

• Hi-Volt Technology: Operates at 24 V, reducing cable current and improving stability. Increase extension cable (4mm2) length up to 25m.
• Teflon (ETFE) Encapsulation: Ensures durability, ideal for portable solar panels.

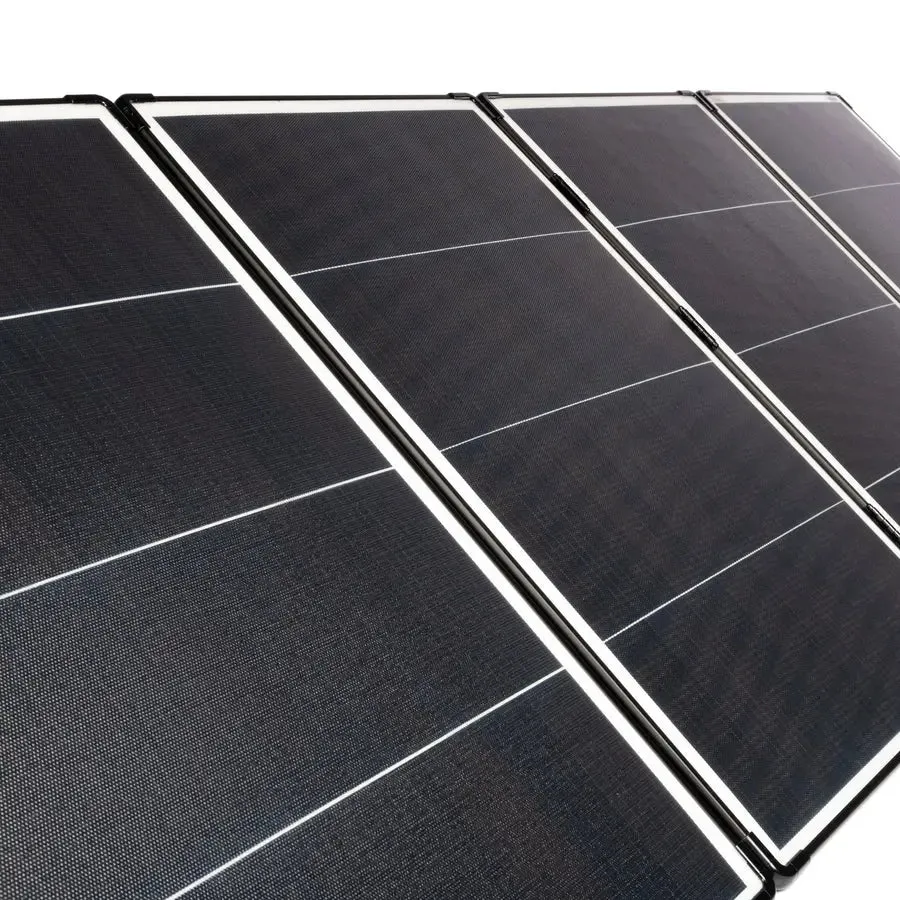

• Shingled Solar Cell Technology: Maximizes power output and minimizes shading losses.

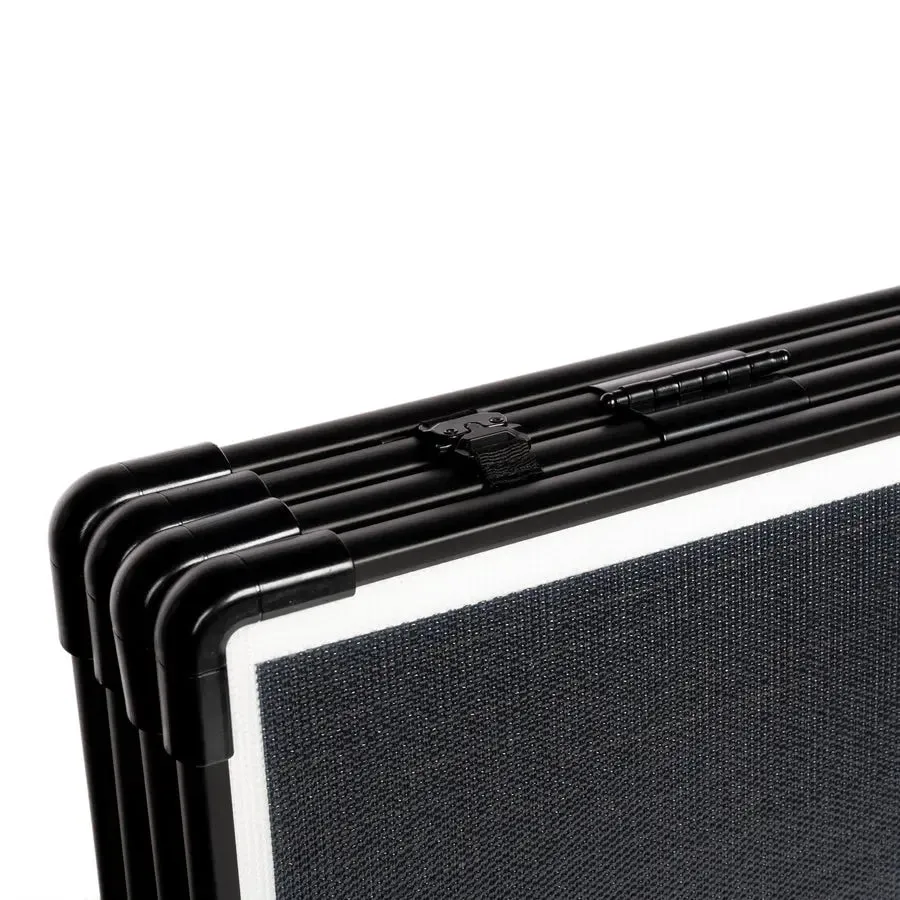

• Aluminium Frame: Provides robust stability to prevent solar cell cracking.

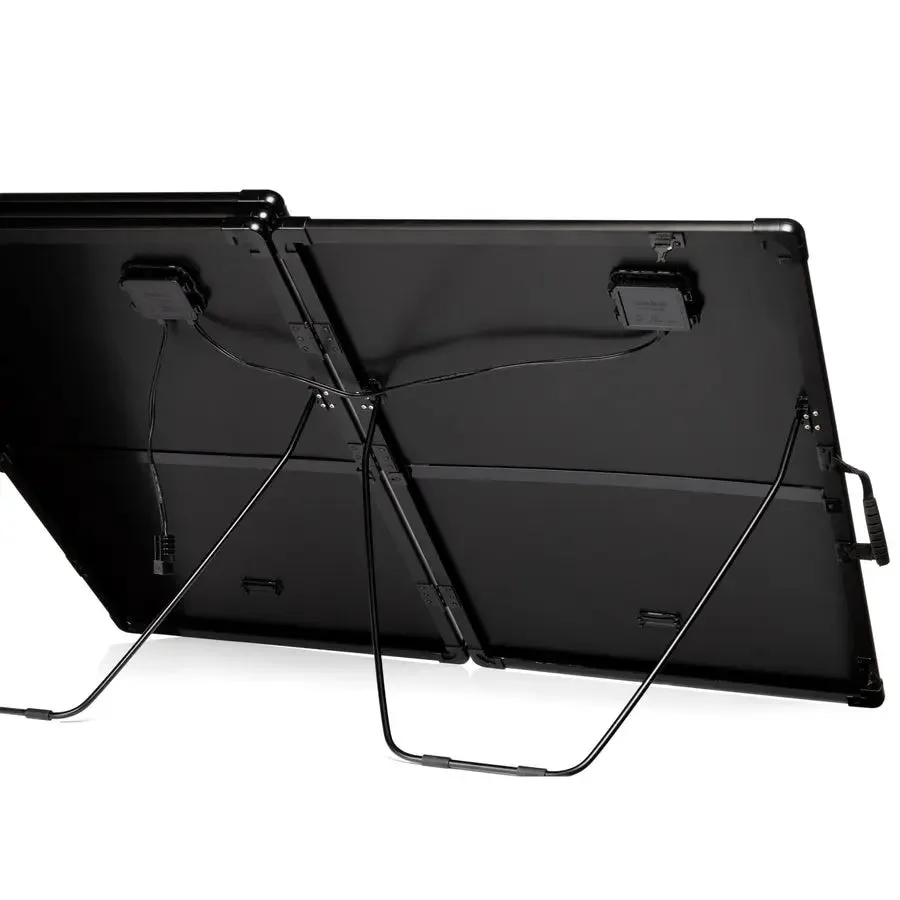

• Supporting Legs: Collapsible legs for optimal solar harvesting at a 45-degree angle.
• Unique Serial Number: Traceable through the entire manufacturing and QC process.

Compatibility

Hi-Volt panels are ideal for use with Victron Smart MPPT charge controllers. Unfortunately, Ctek, RedArc, and other controllers do not yet support Hi-Volt technology. These panels are not suitable for use with PWM charge controllers.
