Key Features:
- Glazing: Clear Double Glazed - 8mm toughened outer pane, 16mm argon filled cavity with warm edge spacer bar, 8.8mm laminated Low E inner pane
- Frame: 5mm Extruded Aluminium Glazing Frame Anthracite Grey (RAL 7016)
- Upstand: Electrically Operated 150mm PVC Vertical Upstand Included
- U-Value: 1.24 W/m2K
- Warranty: 10 Years
- Roof Pitch: 5° - 15°
- Fixings: All Fixings Included
Description:

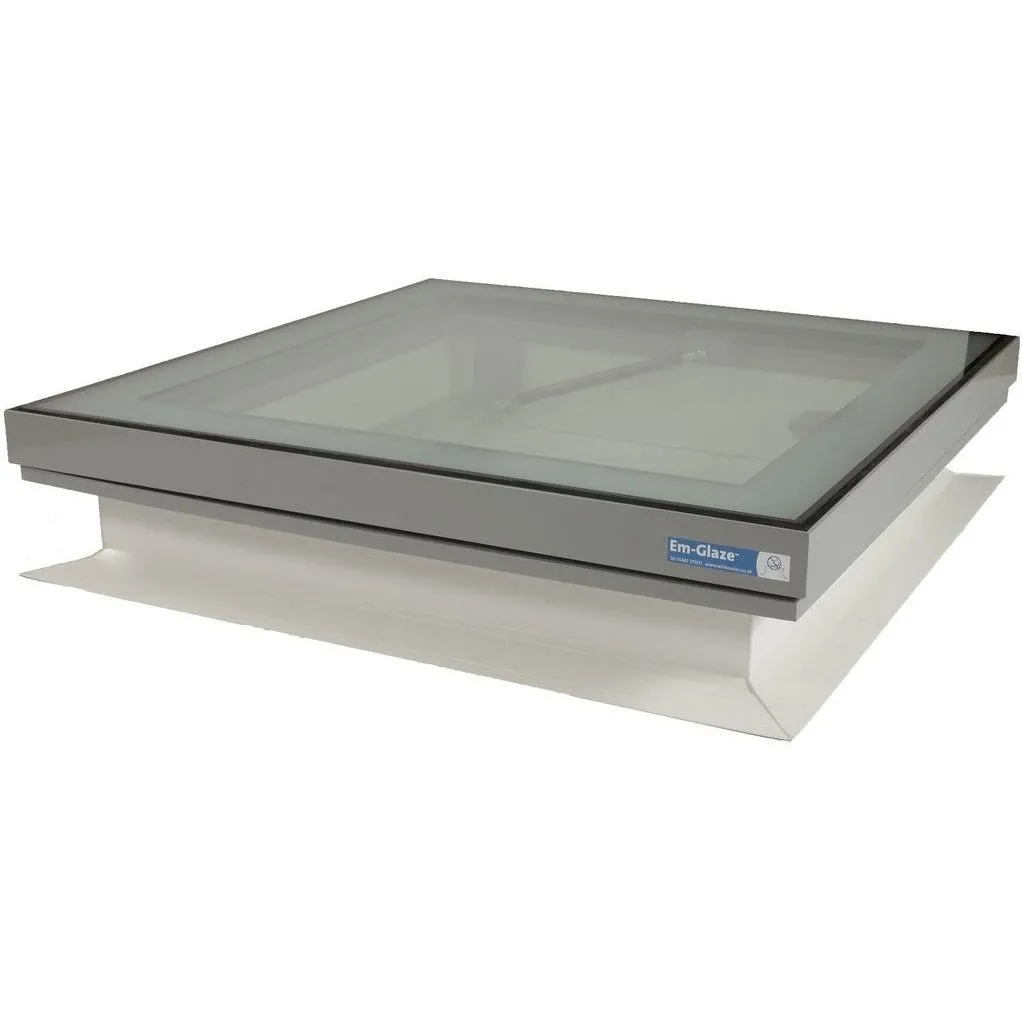

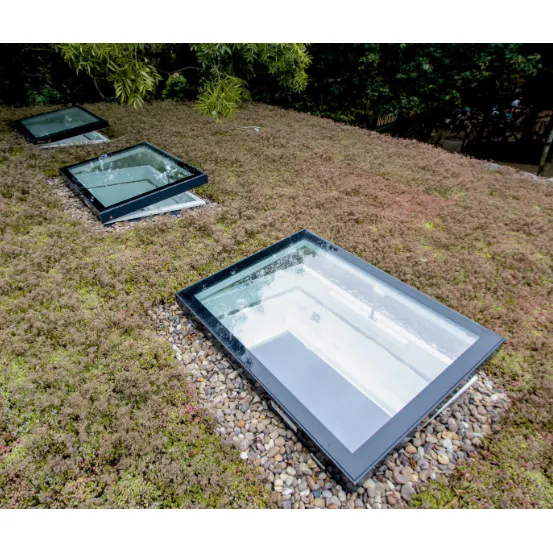

Em-Glaze modular flat glass rooflights are high-quality, aesthetically pleasing prefabricated flat glass rooflights.
Powered hinged opening vents provide the maximum ventilation area to allow rapid air movement opening to 200mm. The electric actuator operation allows control by a wall mounted open/close switch with options for wind, rain and temperature sensors, as well as C02 monitors, and a range of control panels available separately.

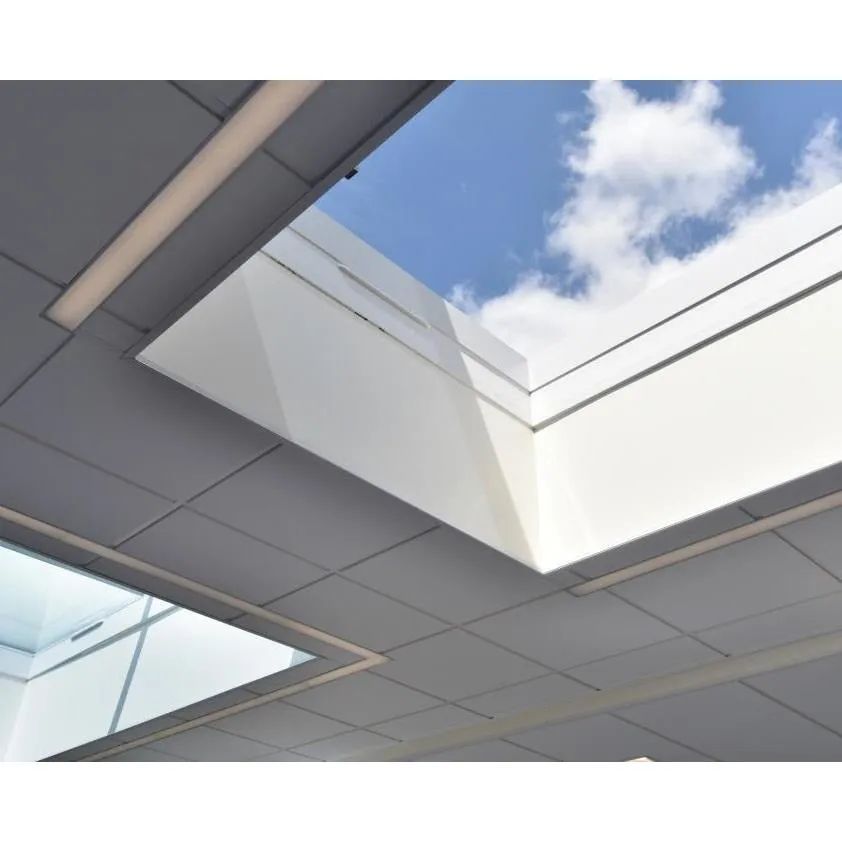

Em-Glaze flat rooflights provide a clean, minimalistic finish inside and out.

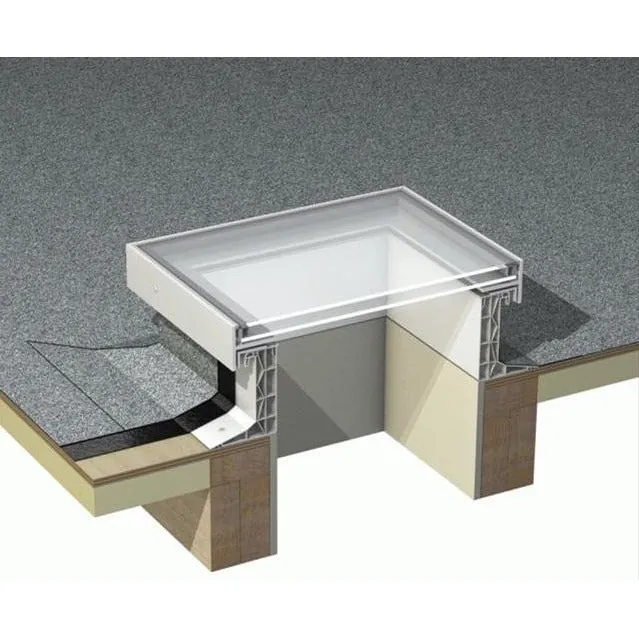

Manufactured with flat sealed glass units, each rooflight incorporates a fully welded aluminium frame and cill detail. All visible aluminium is polyester powder coated light grey as standard or can be powder coated if required.

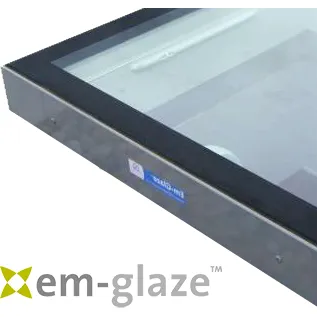

The flush design of the Em-Glaze modular rooflight ensures efficient rainwater drainage. The silkprint edge also guarantees that the double glazed unit holds unrivalled insulation value over its full lifetime.
Double glazed Em-Glaze modular flat glass rooflights are manufactured with 32mm hermetically sealed Low E, argon filled units as standard, with a warm edge spacer, providing a high performance system. For increased thermal values, the rooflight can be supplied with triple glazing.
